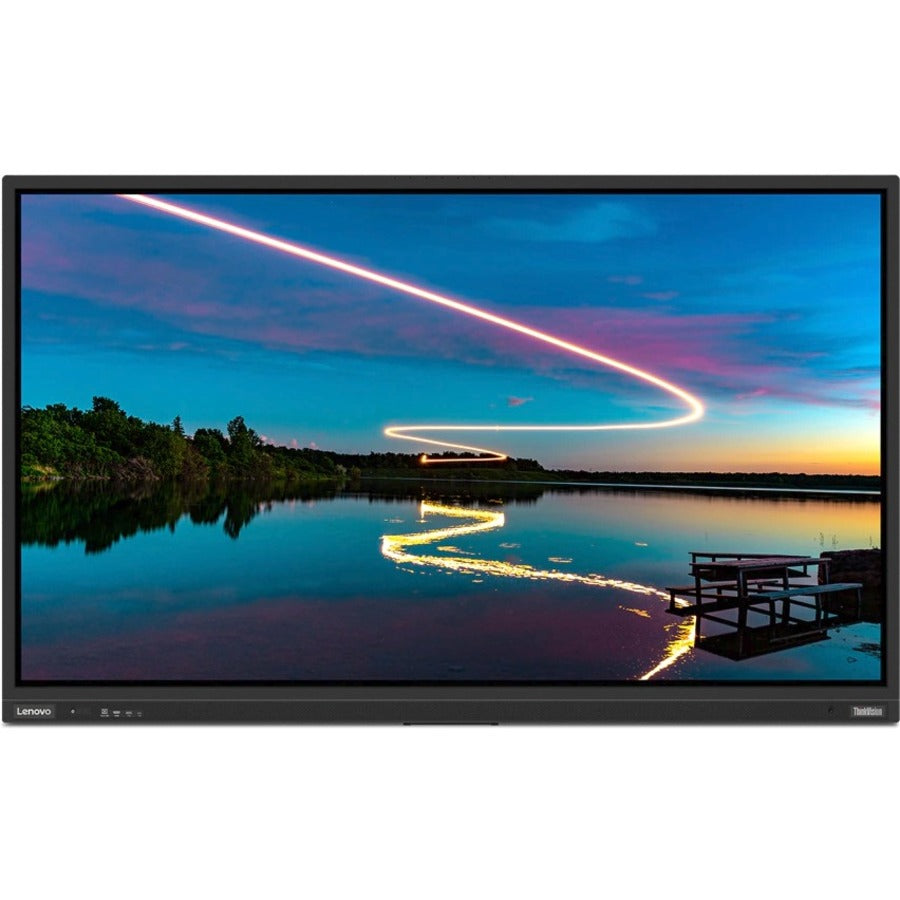

THINKVISION LARGE FORMAT DISPLAY T86

THINKVISION LARGE FORMAT DISPLAY T86

$7,100.14
$7,999.00 $7,100.14
Save $898.86
Shipping calculated at checkout.

Availability: Out of stock

Type: Collaboration Display
Vendor: Lenovo
SKU: 04VR19
UPC:
View full product details

Audio

Speakers:
Yes
Microphone:
Yes
Number of Speakers:
2
RMS Output Power:
30 W
Number of Microphone Array Elements:
8

Basic

Product Type:
Collaboration Display
Speakers:
Yes
Standard Memory:
4 GB
Operating System:
Android 9.0 Pie
Microphone:
Yes
Processor Type:
Cortex A73
Screen Size:
86"
Brand Name:
Lenovo
Processor Core:
Quad-core (4 Core)
Environmental Certification:
China Environmental United Certification Center (CEC)
Touchscreen:
Yes
Processor Manufacturer:
ARM
Graphics Controller Manufacturer:
ARM
Graphics Controller Model:
Mali-G52 MC2
Bluetooth:
Yes
Ethernet:
Yes
Wireless LAN:
Yes
Display Screen Type:
LCD
Touchscreen Technology:
Infrared (IrDA)
USB:
Yes
HDMI:
Yes
Webcam:
Yes
VESA Mount Compatible:
Yes
VESA Mount Standard:
800 x 400
VGA:
Yes
Network (RJ-45):
Yes
DisplayPort:
Yes
Product Family:
ThinkVision
Multi-touch Screen:
Yes
Operating System Platform:
Android
Energy Star:
Yes
Ambient Light Sensor:
Yes
Number of Microphone Array Elements:
8
Product Color:
Raven Black
Energy Efficiency Certification:
China Energy Conservation Program (CECP)
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Camera

Webcam:
Yes

Display & Graphics

Aspect Ratio:
16:9
Contrast Ratio:
3,000,000:1
Response Time:
6.50 ms
Screen Resolution:
3840 x 2160
Brightness:
400 Nit
Color Supported:
1.07 Billion Colors
Screen Size:
86"
Color Depth:
10-bit
Screen Mode:
4K UHD
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Scan Format:
2160p
Graphics Controller Manufacturer:
ARM
Graphics Controller Model:
Mali-G52 MC2
Display Screen Type:
LCD
Display Screen Technology:
Vertical Alignment (VA)
Backlight Technology:
Direct LED
Ambient Light Sensor:
Yes

General Information

Product Type:
Collaboration Display
Manufacturer Part Number:
62F0KATAWW
Manufacturer Website Address:
http://www.lenovo.com/us/en/
Manufacturer:
Lenovo Group Limited
Product Model:
T86
Product Name:
T86 Collaboration Display
Product Line:
ThinkVision
Brand Name:
Lenovo

Interfaces/Ports

USB:
Yes
HDMI:
Yes
VGA:
Yes
Number of Network (RJ-45) Ports:
2
Network (RJ-45):
Yes
Audio Line In:
Yes
DisplayPort:
Yes
Number of HDMI Inputs:
4
Number of HDMI Outputs:
1
Total Number of USB Ports:
9
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
5
Number of VGA Ports:
1

Memory

Standard Memory:
4 GB

Miscellaneous

Package Contents:
  • ThinkVision T86 Collaboration Display
  • Wall Mount Bracket
  • Detachable Camera
  • Wireless Projection Dongle
  • 1 x Power Cable
  • 1 x HDMI Cable
  • 1 x USB Type-B to Type-A Cable
  • Remote Control with Battery
  • 2 x Stylus
  • Quick Setup Guide
  • Warranty Booklet
Environmentally Friendly:
Yes
Environmental Certification:
China Environmental United Certification Center (CEC)
Energy Star:
Yes
Energy Efficiency Certification:
China Energy Conservation Program (CECP)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)

Network & Communication

Bluetooth:
Yes
Ethernet:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac
Bluetooth Standard:
Bluetooth 5.0

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
800 x 400
Product Color:
Raven Black

Power Description

Input Voltage:
120 V AC
Power Consumption:
410 W
Standby Power Consumption:
500 mW

Processor & Chipset

Processor Type:
Cortex A73
Processor Core:
Quad-core (4 Core)
Processor Manufacturer:
ARM

Software

Operating System:
Android 9.0 Pie
Operating System Platform:
Windows

Touchscreen Information

Touchscreen:
Yes
Touchscreen Technology:
Infrared (IrDA)
Multi-touch Screen:
Yes
Number of Touch Points:
20

Warranty

Limited Warranty:
3 Year
