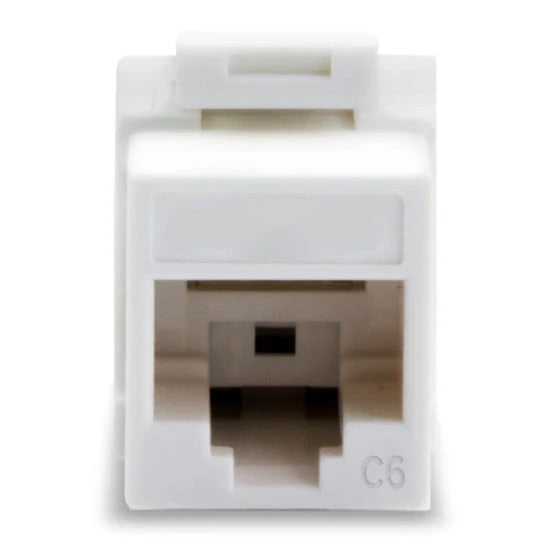

These modular keystone jacks are colour coded for both 568A and 568B standards and can be terminated using a standard 110 or Krone Tool. A NIFFON quick tool, product code QTKS, is now available saving time and money when terminating multiple jacks. Wire retaining caps are supplied and can be used to provide additional cable strain relief.


PRODUCT FEATURE

• Fully compliant to ISO/IEC 11801 Standard

• UL 94V-O rated

• Accepts solid 22-24 AWG diameter conductors

• Universal colour-coding 568A and 568B Standards

• Lead frame technology eliminates the possibility of PCB failures

• Compatible with NIFFON Quick Tool (QTKS)

TRANSMISSION PERFORMANCE

Fully compliant with ISO/IEC 11801
Meet all requirements specified in connecting hardware requirement of ANSI/TIA-568 - C.2 Cat 6


ELECTRICAL

Electrical Insulation Resistance: 500 MΩ min. @100V d.c.
Dielectric Withstanding Voltage: 1000V d.c. or a.c.
Peak Contact to Contact @ 60Hz for 1 minute


MECHANICAL

Insertion/Extraction Life : 750 Cycles Minimum IDC Wire Gauge: 22~24 AWG


PHYSICAL

Housing : DC~5.5*2.1
Spring Wire : Phosphor Bronze Alloy Plated with 50 micro-inch of Gold
IDC : Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy
