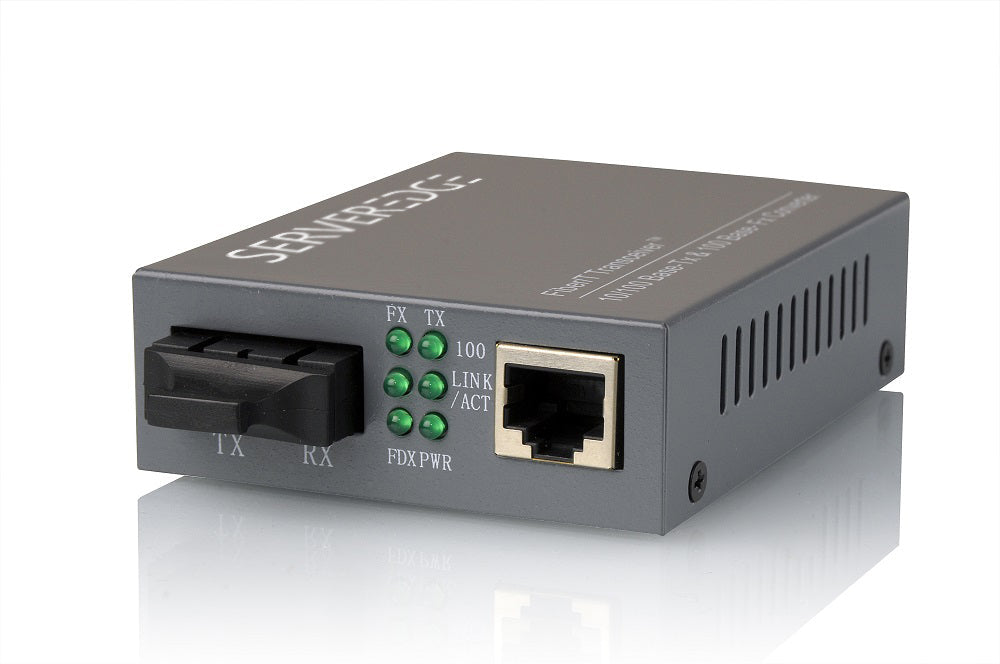

The NIFFON SED-100SSC-100 fibre media converter allows you to connect your copper infrastructure to the fibre channel and vice versa. The built-in 10/100 switch enables the fibre cable connection to operate at 100Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant. Fibre connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub, with the built-in switch providing the network segmentation that permits the maximum fibre distance. Each media converter provides a 10/100 BaseT/TX Auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto-MDIX capability on the twisted-pair port allows for convenient connections.

PRODUCT FEATURE

* Built-in Twisted-Pair Port 10/100 Switch

* Auto-Negotiation RJ45 Connector with Auto-MDIX

* SC Connector

* LEDs for Functions, Links & Activity

* Link Fault Signaling for use with Managed Switches

* 1024 Mac Address Capacity

* Store and Forward Architecture

* Full and Half Duplex Operation

* Singlemode Spans up to 100Km

* Wall or Chassis Mountable

* IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant

* Compliant to FCC part 15 Class A, CISPR Class A, VCCI Class A, CE Mark, CTick

PRODUCT SPECIFICATION
