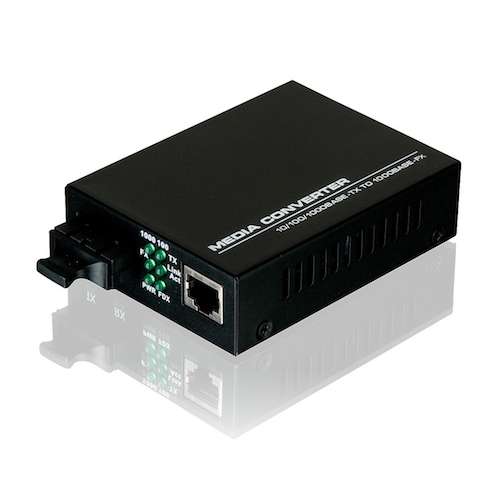

The Serveredge Gigabit Media Converter SED-1000SSC-120 allows you to transparently connect your Gigabit Copper cabling system (1 Base-T, 1 Base-TX or 1 Base-T) with the fibre optic cabling system (1 Base-FX). This media converter provides a long distance connection between legacy 1 BaseT and 1 BaseTX networks and the 1 Base Gigabit Ethernet networks. The SED-1000SSC-120 incorporates advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fibre Fault Alert & loop back.
This unit can be used as a standalone unit or as a slide in module in a 14 slot Media Converter Chassis.
PERFORMANCE
Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,810 pps (64-byte packets)
Throughput @ 1000Base: 1,488,110 pps (64-byte packets)
FIBRE INTERFACE, MULTIMODE MODELS
Type: MQW Laser
Wavelength: 1300 nm nominal (1270 nm maximum, 1355 nm minimum)
Maximum Output Power: -3.0 dBm
Minimum Output Power: -11.0 dBm
Sensitivity: -22.0 dBm
Maximum Input Power: -3.0 dBm
Link Power Budget: 11.0 dB
PHYSICAL CHARACTERISTICS
Case Dimensions: 110mm x 81mm x 23mm
Weight: 150 grams
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
Relative Humidity: 10% ~ 90%, non-condensing
POWER
External power adapter: 12 Volts DC; 600 mA
Power Consumption: 5 Watts Maximum
