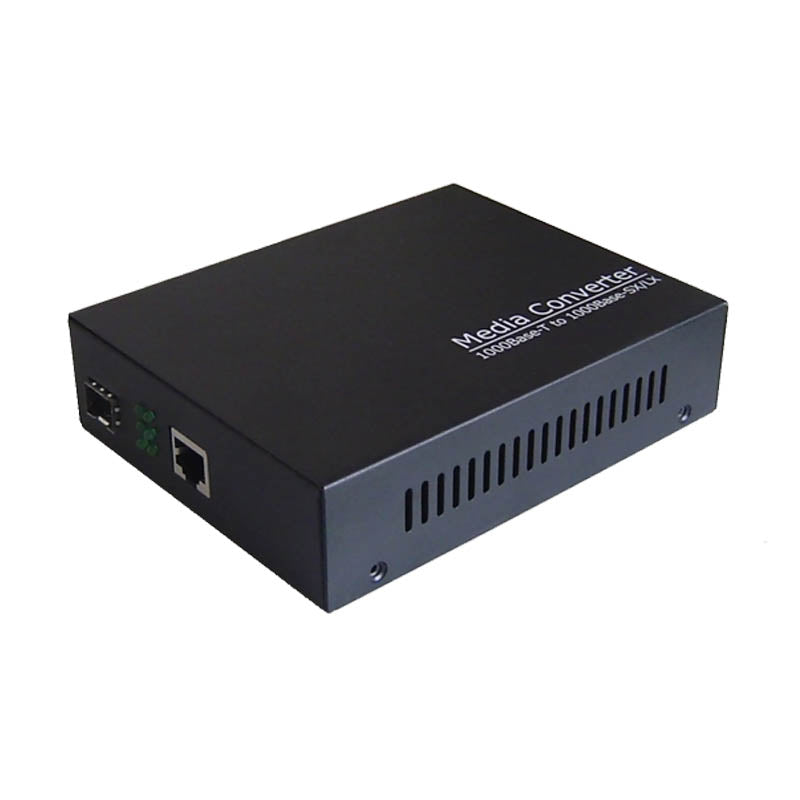

The Serveredge Gigabit Media Converter SED-GMSLC55020 allows you to transparently connect your Gigabit Copper cabling system (1 Base-T, 1 Base-TX or 1 Base-T) with the fibre optic cabling system (1 Base-FX). This media converter provides a long distance connection between legacy 1 Base-T and 1 BaseTX networks and the 1 Base Gigabit Ethernet networks. The SED-1 MLC(550m) incorporates advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fibre Fault Alert & loop back.
This unit can be used as a standalone unit or as a slide in module in a 14 slot Media Converter Chassis.

PRODUCT FEATURE


PRODUCT SPECIFICATION

PERFORMANCE
Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,810 pps (64-byte packets)
Throughput @ 1000Base: 1,488,110 pps (64-byte packets)


FIBRE INTERFACE, MULTIMODE MODELS
Type: Laser Diode
Wavelength: 850 nm nominal
Maximum Output Power: - 4.0 dBm
Minimum Output Power: - 9.5 dBm
Sensitivity: -13.5 dBm
Maximum Input Power: - 13.5 dBm
Link Power Budget: 4.0 dB


PHYSICAL CHARACTERISTICS
Case Dimensions: 120mm x 86mm x 26.8mm
Weight: 400 grams


ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -10°C ~ 65°C
Relative Humidity: 5% ~ 90%, non-condensing


POWER
External power adapter: 5V ~ 2A
Power Consumption: 5 Watts Maximum
