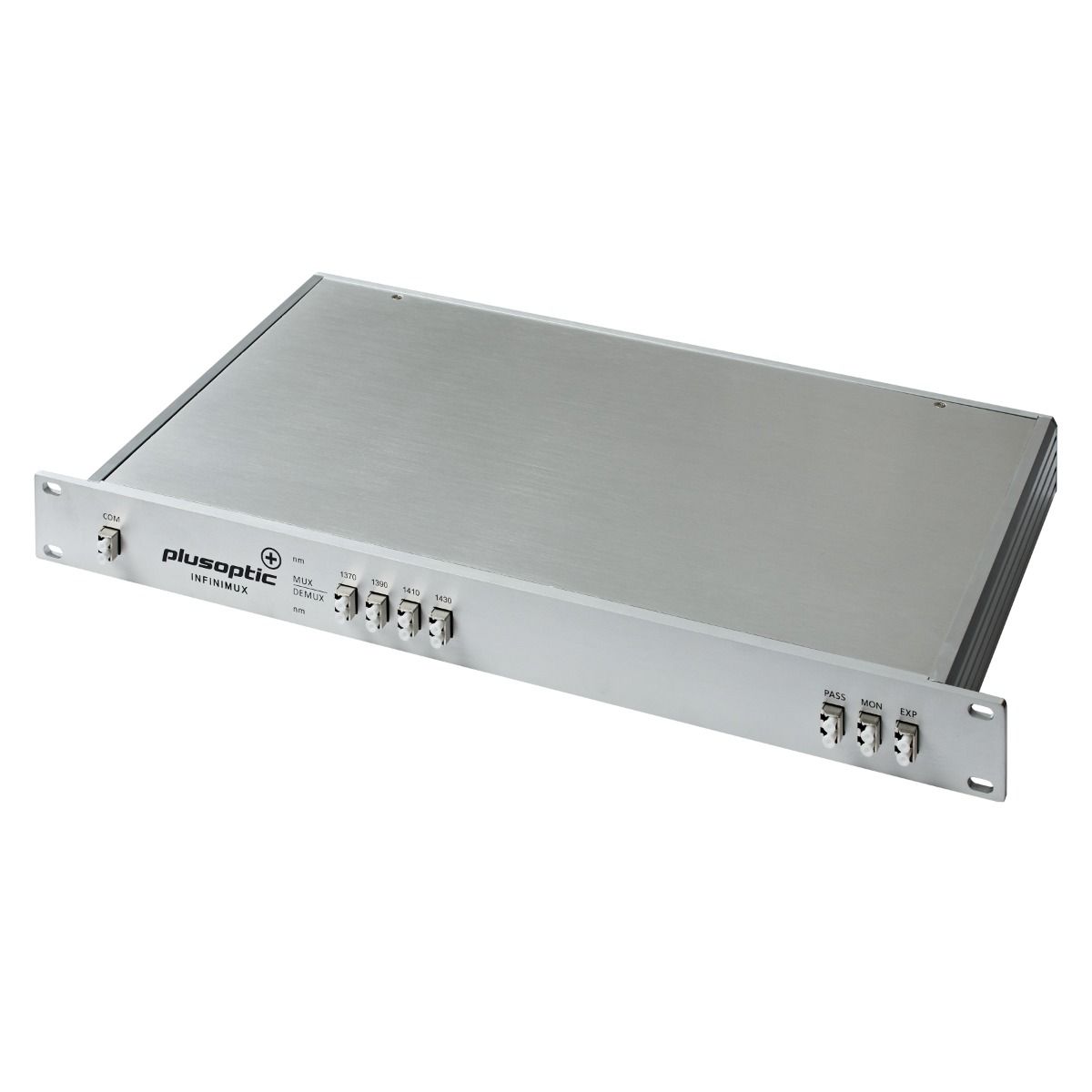

This CWDN (Coarse Wavelength Division Multiplex/Demultiplex) provides you with the scalability to expand a fibre optic network without the need to change fibers running at different wavelengths. This cost saving solution is achived by either combining signals together known as Multiplexing (Mux), or by spliting signals apart known as Demultiplexing (Demux)

• Operating Wavelengths (nm): 1310 , 1390, 1410,1430 and 1450
• Includes an Expansion slot for future expandability
• Includes a Monitoring port for peace of mind.
• Mux Insertion Loss (dB): <2.1, See below table for the insertion loss for each Wavelength
• Demux Insertion Loss (dB):  <2.1, See below table for the insertion loss for each Wavelength
• Channel Ripple (dB): <0.5
• Polarization Dependent Loss (dB): <0.10)
• PMD (ps): <0.10

1-year limited warranty
