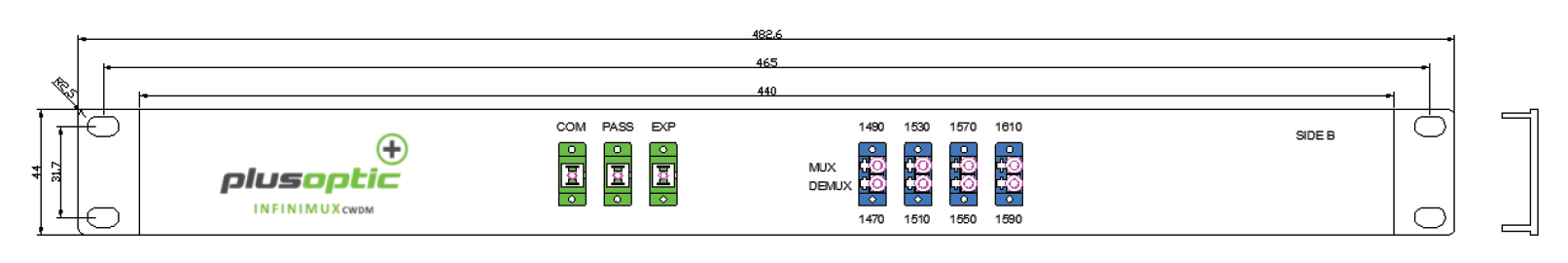

The PlusOptic MD-8CH-1RU-CWDM-LCSX-B is an 8-channel CWDM Mux/Demux unit, specifically designed for high-performance data transmission. It operates within a 1RU, 19” rackmount chassis, offering seamless integration with network environments that require multiple wavelength management. This device features 8 channels (1470 to 1610 nm) along with an EXP and 1310 nm pass-through port, making it an ideal choice for long-distance fiber optic communication. With minimal insertion loss and robust build quality, it ensures high efficiency and reliable performance even in demanding conditions.

FEATURES

• Supports 8 CWDM channels (1470 to 1610 nm) plus 1310 nm pass-through
• Single fiber operation with SC/APC and LC/UPC connectors
• High channel isolation and low insertion loss (≤3.2 dB)
• Compact 1RU, 19” rackmount design
• Operating temperature range of -10°C to +75°C, ensuring durability

SPECIFICATIONS

• Operating Wavelength: 1260~1610 nm
• Channels Supported: 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1310 ± 50nm, EXP
• Channel Spacing: 20 nm
• Channel Passband (@ -0.5 dB bandwidth): ≥13 nm
• Insertion Loss: ≤3.2 dB
• Isolation (Adjacent): >30 dB
• Isolation (Non-adjacent): >40 dB
• Insertion Loss Temperature Sensitivity: <0.5 dB
• Wavelength Temperature Shifting: <0.002 nm/°C
• Polarization Dependent Loss: <0.2 dB
• Polarization Mode Dispersion: <0.1 ps
• Directivity: >50 dB
• Return Loss: >45 dB
• Maximum Power Handling: 300 mW
• Operating Temperature: -10°C to +75°C
• Storage Temperature: -40°C to +85°C
• Fiber Type: G657A1
• Connector Types: SC/APC for COM & 1310nm ports, LC/UPC for others
• Rack Size: 19” 1RU
