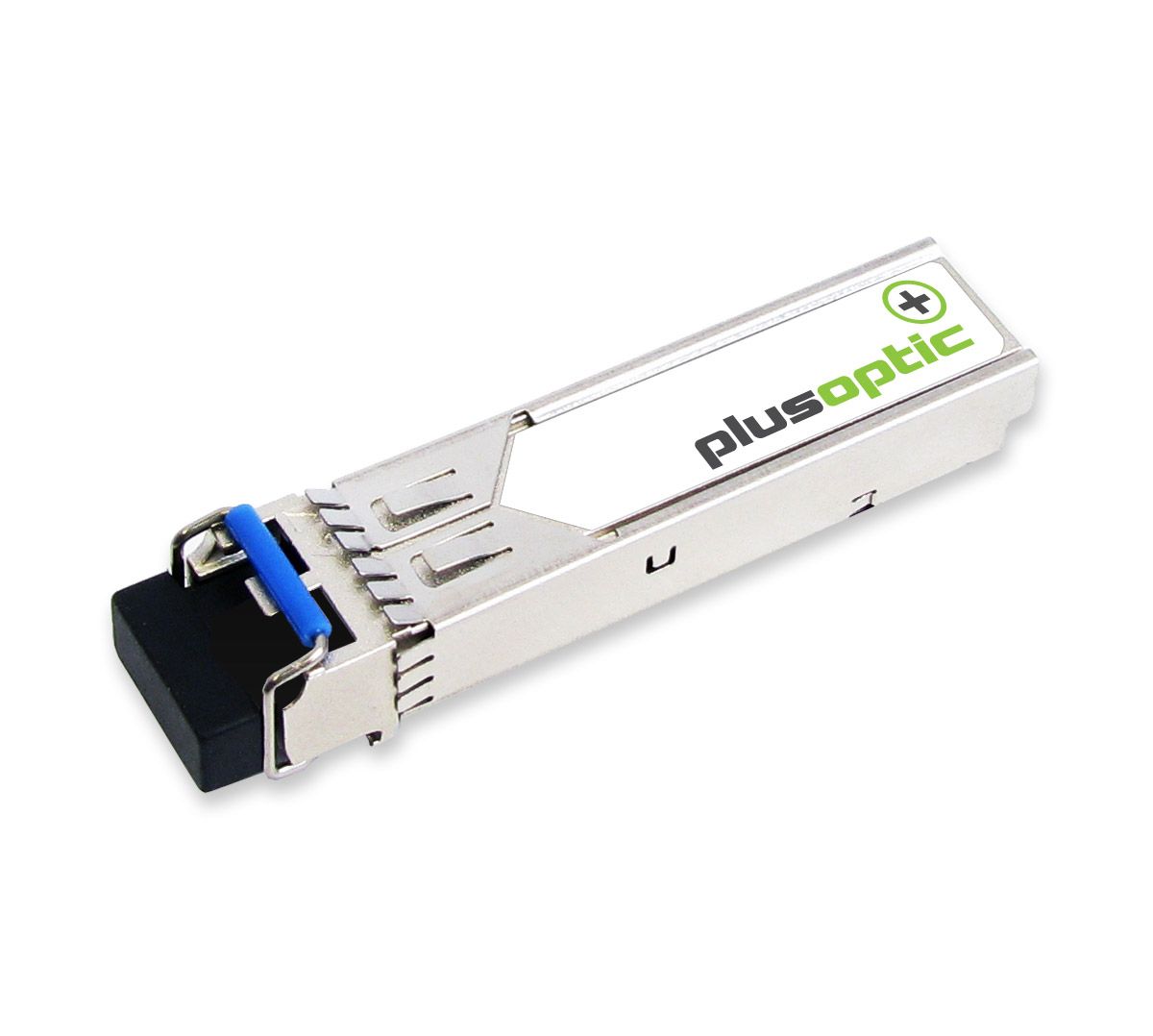

Plusoptic 1.25G, SFP, 1310nm, 20KM Transceiver, LC Connector for SMF with DDMI | Industrial temperature rated

Plusoptic 1.25G, SFP, 1310nm, 20KM Transceiver, LC Connector for SMF with DDMI | Industrial temperature rated

Regular price $33.99
Regular price Sale price $33.99
Shipping calculated at checkout.
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the...

Vendor: NIFFON
SKU:
UPC:
View full product details

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fibre.



The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

FEATURES

  • Up to 2.25Gb/s data links
  • Up to 20km on 9/125µm SMF
  • 1310nm FP laser
  • Hot-pluggable SFP footprint
  • Duplex LC/UPC type pluggable optical interface
  • Single 3.3V power supply
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitoring interface (DDM)
  • Case operating temperature
    • Industrial: -40°C to +85°C

APPLICATIONS

  • Switch to Switch Interface
  • 1.25Gbps 1000Base-LX
  • 1G/2G Fibre Channel
  • Switched Backplane Applications
  • Router/Server Interface
  • Other Optical Links

WARRANTY

3-years limited warranty


TAA-approved SFPs available upon request, Contact us for more details.
