Fusion Pro NEXUS USB-C Universal Video Dock

Fusion Pro NEXUS USB-C Universal Video Dock

$114.39
$142.99 $114.39
Save $28.60
Shipping calculated at checkout.

Availability: 169 in stock

Vendor: ALOGIC
SKU: FUPCVH
UPC: 9350784027306
View full product details

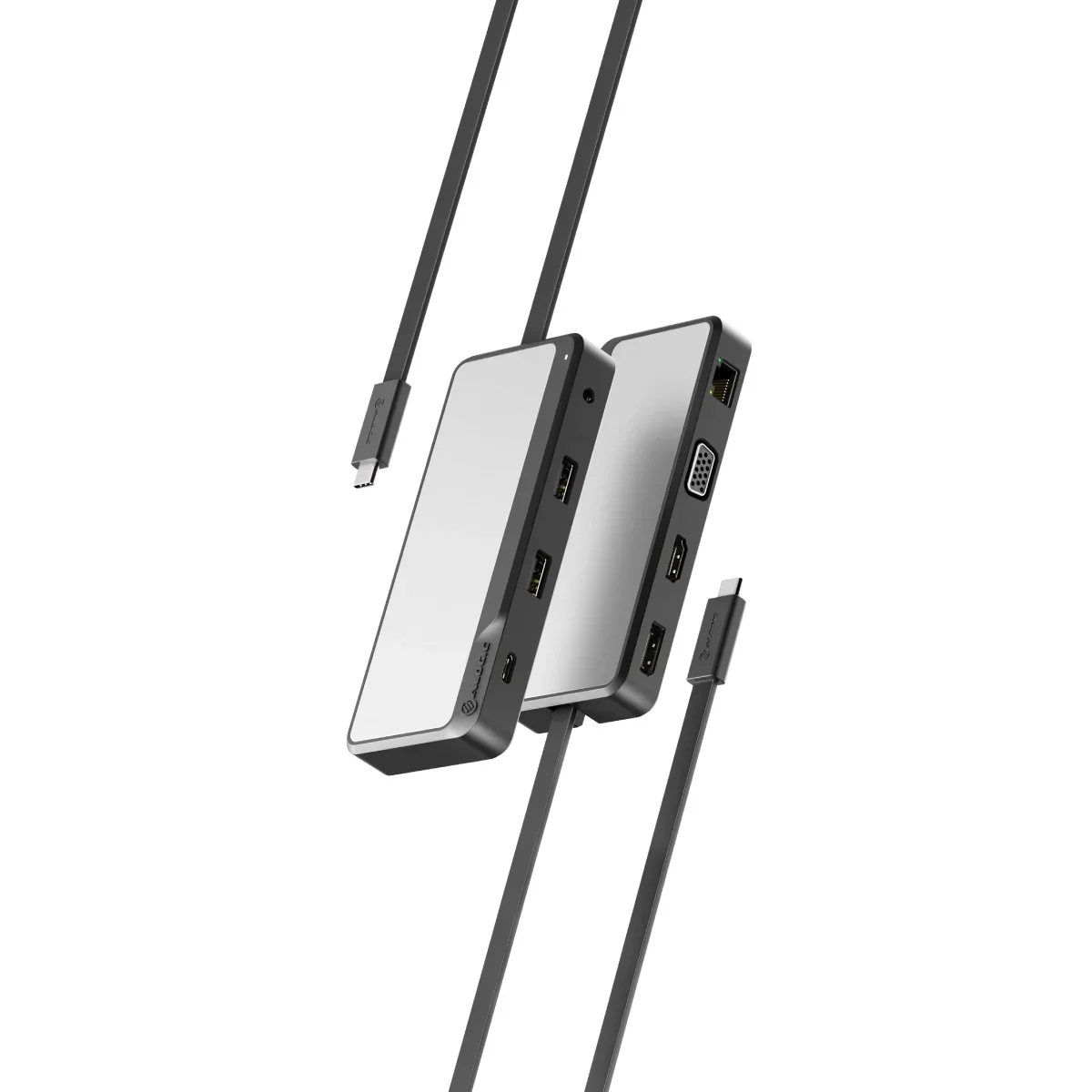

Fusion Pro NEXUS
USB-C Universal Video Dock
​Simplify technology with the ALOGIC NEXUS Universal Video Dock.
Up to 4K Video
Pass-through Charging
Built-in USB-C Cable
Shielded Construction
Compact & Portable
Simplify Connections
on the Go

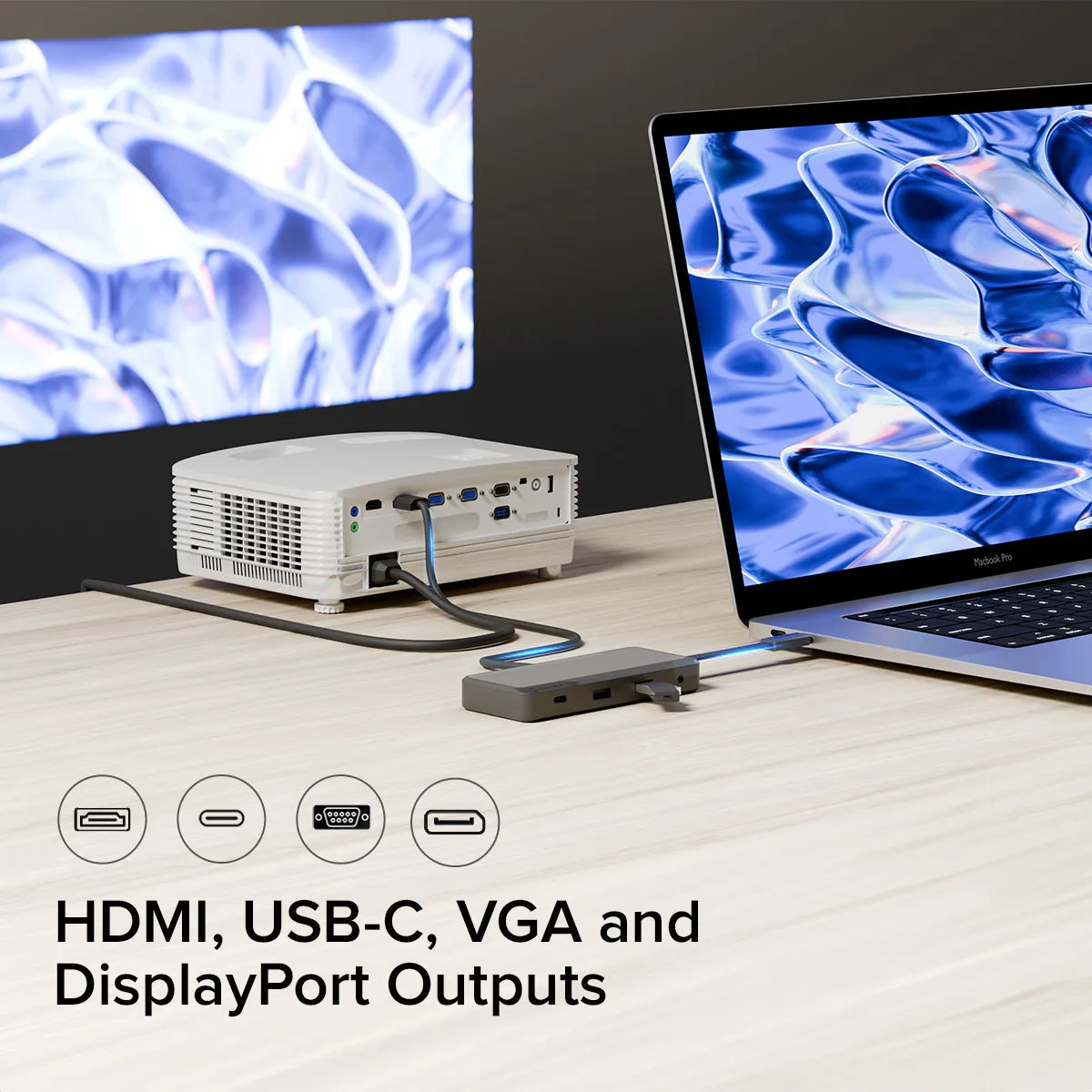

The ALOGIC NEXUS Universal Video Dock has been designed to easily connect your computer to any display and audio system you’re likely to encounter. Featuring HDMI, DisplayPort, VGA and USB-C video outputs, the NEXUS dock is the last word in portable video connectivity.

Stunning 4K Video

Ensure your presentation looks its best.
The NEXUS dock supports up to 4K video output from HDMI, DisplayPort and USB-C video outputs to provide the most detailed and realistic images possible*.

SUPPORTS
SINGLE DISPLAY

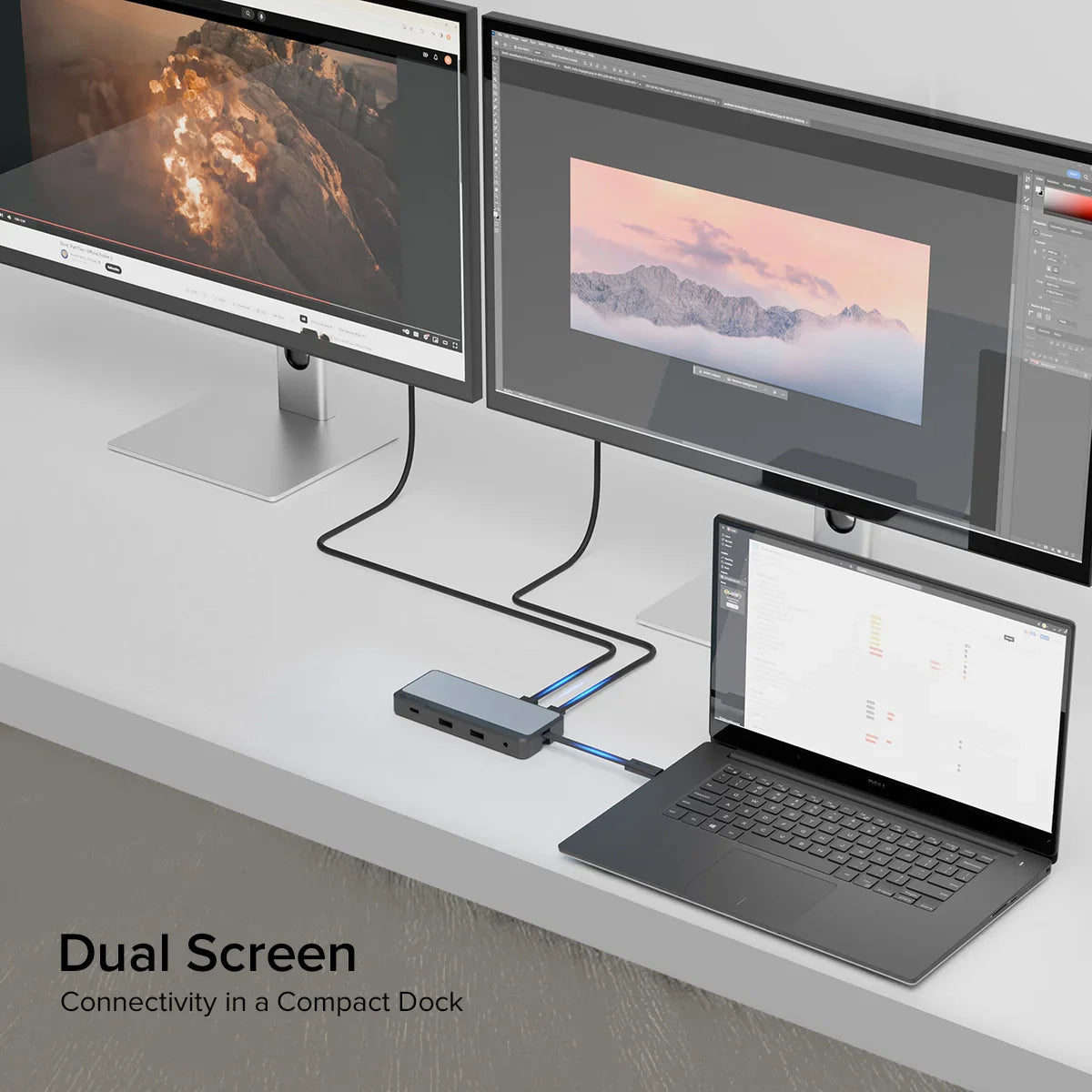

2+ DISPLAYS

*Number of displays and resolutions supported are dependent on the type and capability of the computer used. Apple Mac computers support a single display with this device. Windows machines are able to connect multiple displays.

Easy, Breezy Multitasking

This multi-purpose hub is designed for mobile users – road warriors, educators, students and professionals who work between the office and home.

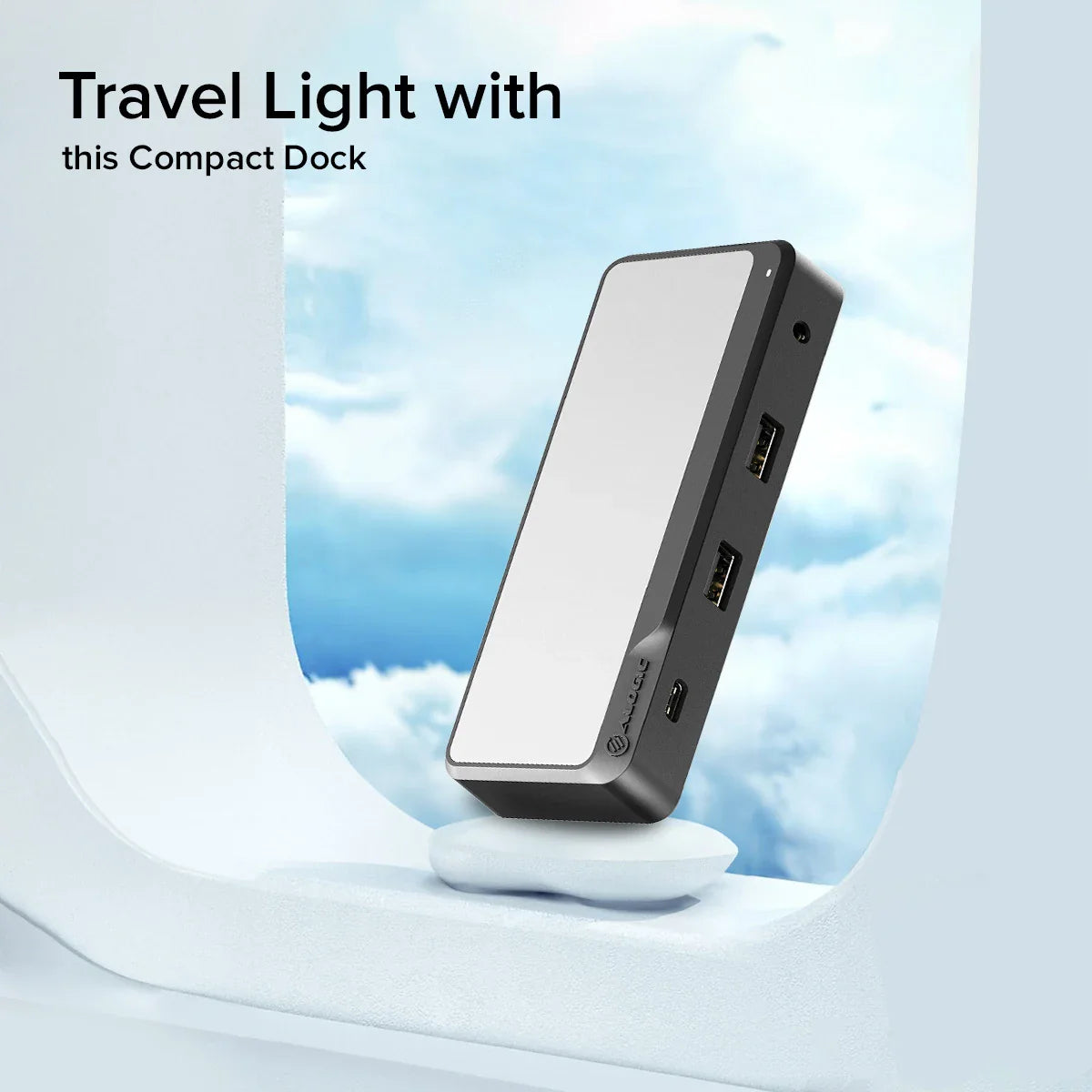

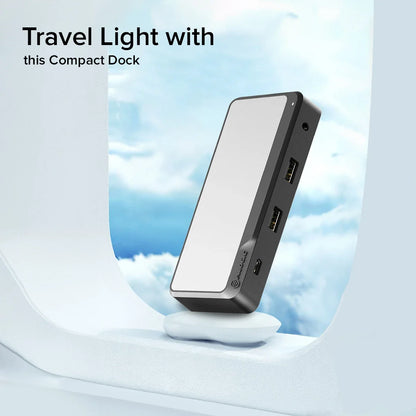

Built for Travel

A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is strong, and the folding cable stows within the housing so it can live in a laptop bag while taking up minimum space and without fear of being damaged.

Recommended Accessories
Rapid Power 100W Inline USB-C GaN Charger
Universal 100W Fast Charging
100 Rapid Power 100W GaN Charger
Includes 2m 100W USB-C Charging Cable
4 Port 100W GaN Charger
Includes 2m 100W USB-C Charging Cable
  • Part No.: FUPCVH

Physical Characteristics

  • Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
  • Cable Length: 230mm
  • Colour: Space Grey and Black
  • Weight (product): 88g approx
  • Materials: Aluminium and ABS

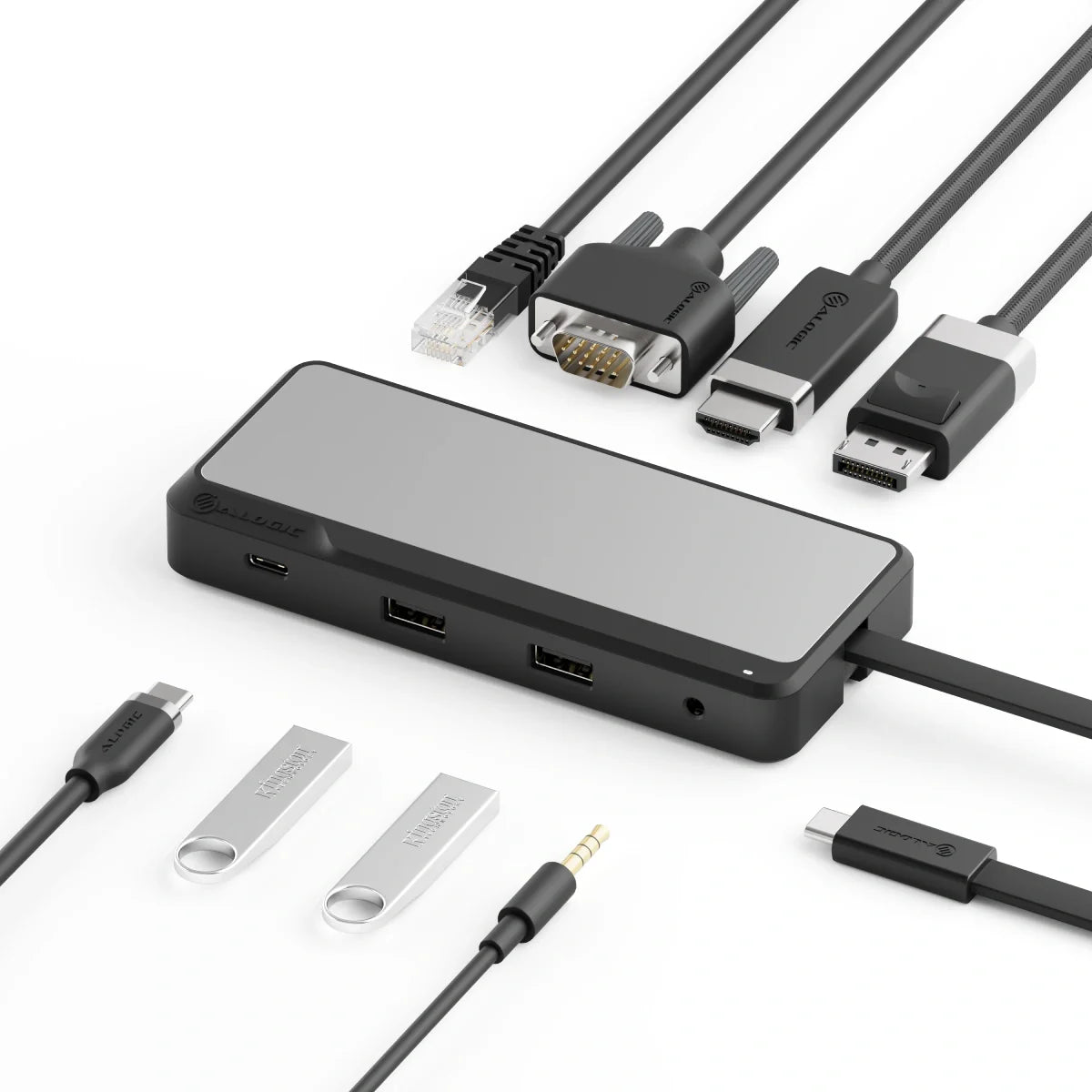

  • Input: 1 x Integrated USB-C cable for connection to computer
    1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB-C video output)
  • Output: 1 x HDMI 2.0
    1 x DisplayPort 1.4
    1 x VGA
    1 x USB-C 3.2 Gen 2 10Gbps with DP 1.4 Alt Mode and PDpassthrough
    2 x USB-A 3.2 Gen 2 10Gbps
    1 x 3.5mm Audio

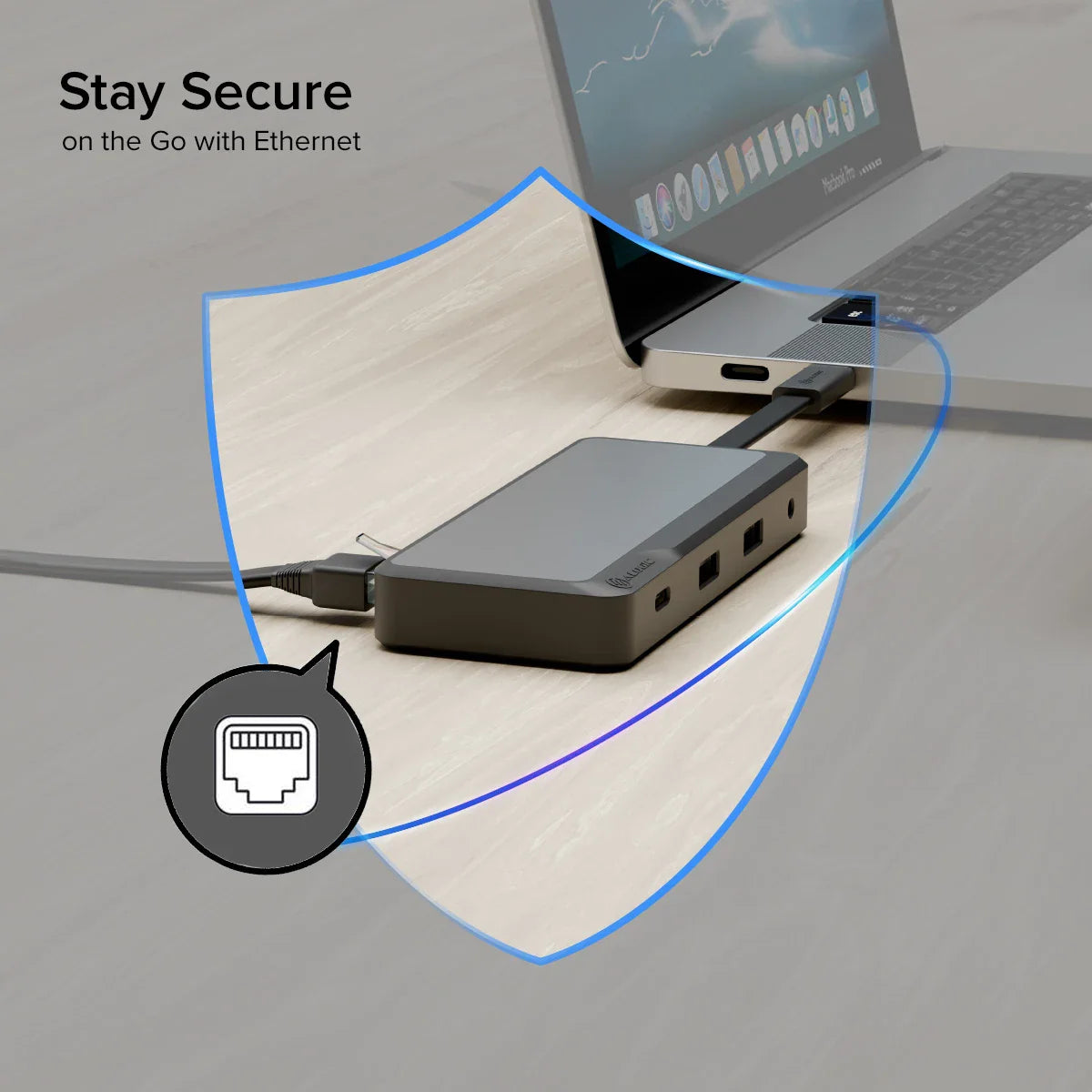

    1 x RJ45 Ethernet 1Gbps

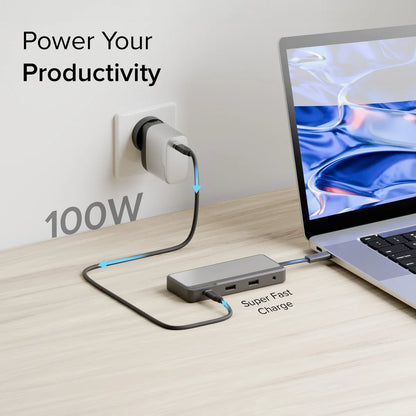

  • Power: Can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).

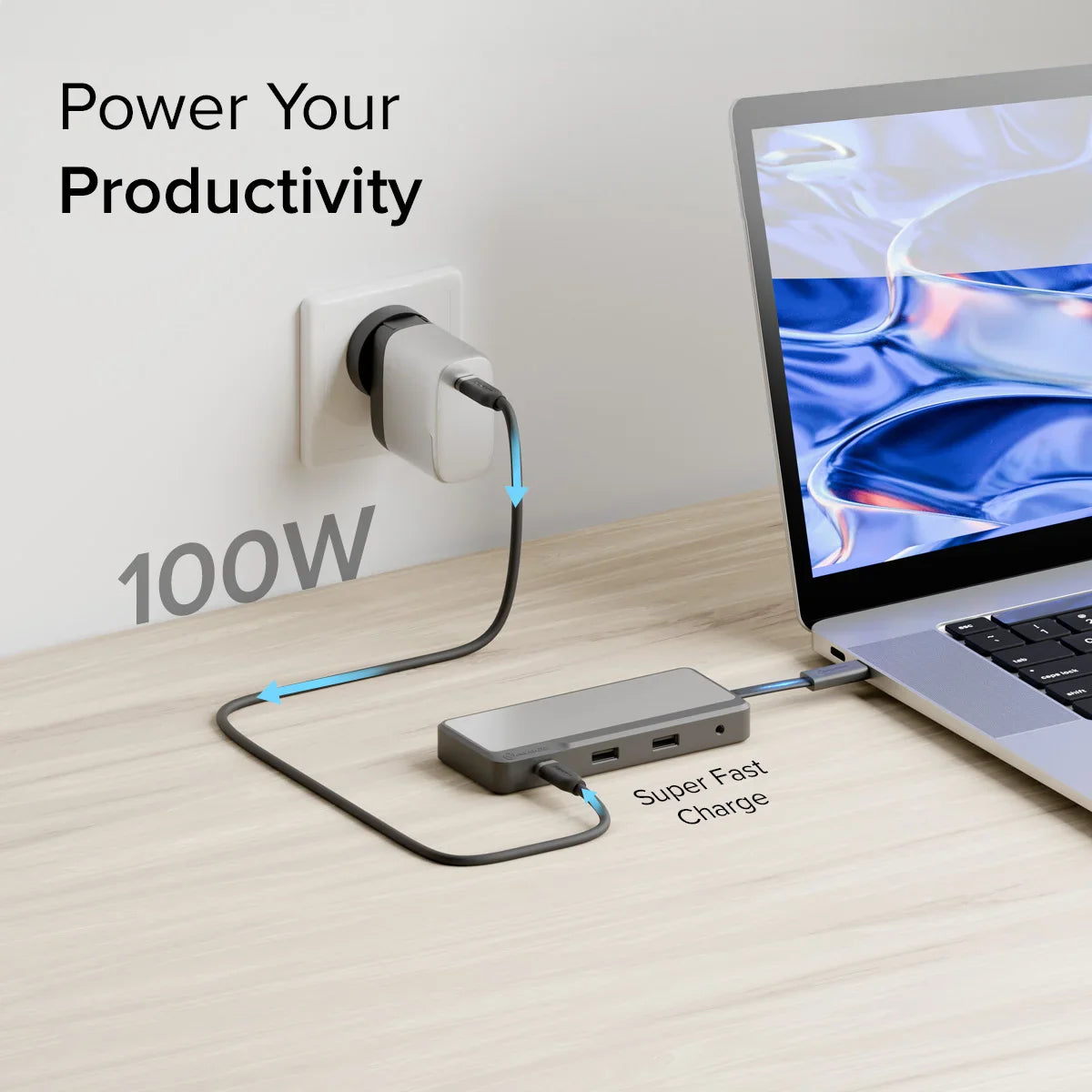

    The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
  • Video Resolution: HDMI, DisplayPort and USB-C - Up to 4K UHD at 60Hz
    VGA - Up to 1920x1200 WUXGA
    Maximum resolution is dependent on the capability of the host computer and resolution of the connected display.
    See resolution tables at the bottom of this document for full specifications.
  • Audio Support: Supports HDMI audio output
    Supports stereo audio out and mic/line in via 3.5mm connector
  • Environmental Characteristics: Operating Temperature - 0°C to +35°C
    Operating Humidity - 10% to 85% RH (no condensation)
  • Package Includes: 1 x FUPCVH USB-C Universal Video Hub
    1 x User Manual
  • Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
    USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video ports on the hub to work.
    USB-C port on the computer that the device is connected to must support USB Power Delivery charging for pass through charging from the hub to work.
    Windows and some Chrome OS computers are able to show independent video on more than one display connected to this device.
    MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display.
  • Compliance: FCC, CE, UKCA, RoHS
  • Warranty: 2 Years
  • Barcode (EAN): 9350784027306
