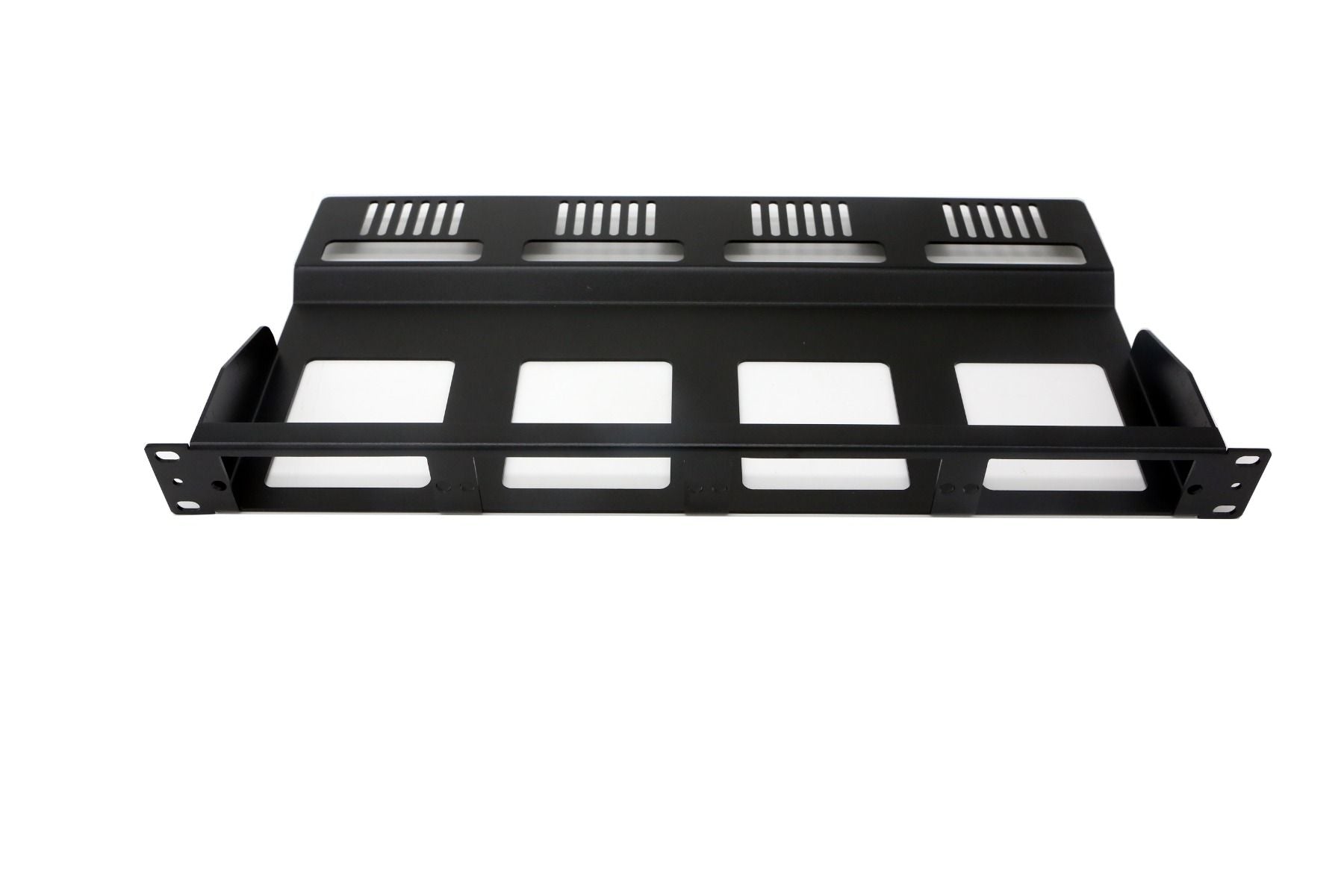

The MPO/MTP Cassettes Chassis Panel provides the rapid fibre deployment market with an extremely cost effective, expandable and high speed system. The modular panel and cassettes have been designed to simplify installation and offer users an easy to expand modular system. The modular panels can accept 4 cassettes, which are simply inserted and locked into the panel by push/pull pins. For upgrading or maintenance purposes, cassettes can be easily unlocked and removed from the panel. The cassettes are factory preterminated and available in 6 duplex SC, and 6, 12 or 18 duplex LC options. MPO/MTP connectors simply plug into the rear of the cassette, and inside pre-terminated multiple fiber cable splits out to either LC or SC connectors at the front.

• Expandable modular system
• 1U capacity
• 4 modular panel options
• Reduces installation time and costs
• Compact and easily removable cassette

• Optical switching interframe connections
• High fibre density card edge access
• Array trunk cables
• Data Center cabling

• Width: 482.6mm
• Height: 1U
• Depth: 1U 233mm
• Material: Aluminum
• Finish: Fine textured black paint
• Capacity: 4 cassettes
• Installation: Standard EIA 19" Rack Rails

• MPO Cassette:
  • MPO-LC-12A-CASSETTE | MPO CASSETTE 12 Port LC/UPC OM4 (1 x 12 Core MPO-LC) Type A
  • MPO-LC-12AF-CASSETTE | MPO CASSETTE 12 Port LC/UPC OM4 (1 x 12 Core MPO-LC) Type AF
  • MPO-LC-12S-CASSETTE | MPO CASSETTE 12 Port LC/UPC OM4 (1 x 12 Core MPO-LC) Customised Type
• Cable Management:
  • MPO-PANEL-1U-CM | Cable Management Suitable for 1U or 3U Fibre Patch Panel

1-year limited warranty
