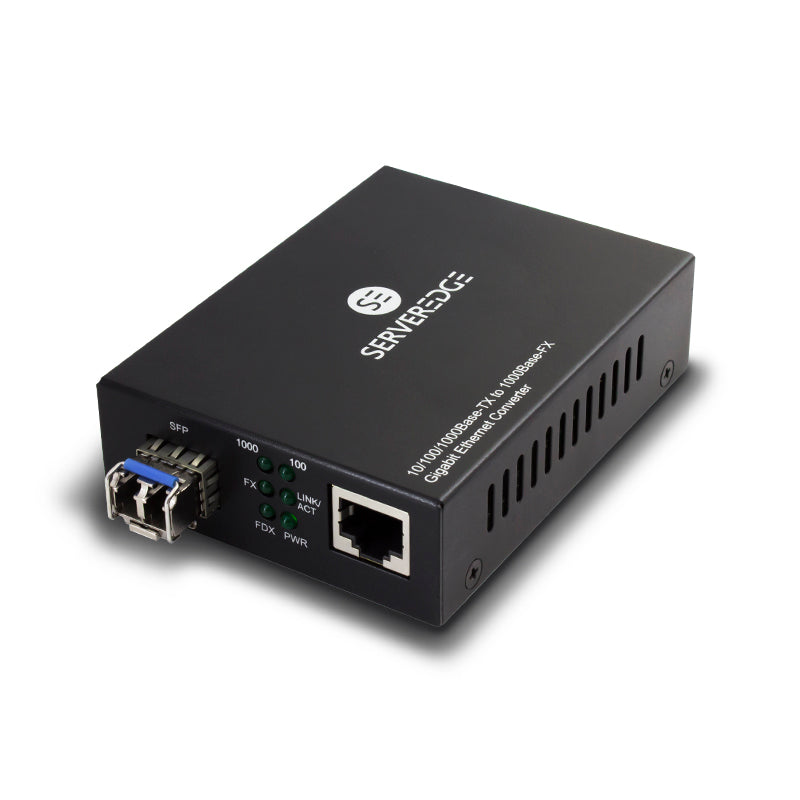

The Serveredge Gigabit Media Converter SED-1000MLC-10 allows you to transparently connect your Gigabit copper cabling system (10Base-T, 100Base-TX or 1000Base-T) with the fibre optic cabling system (1000Base-FX). This media converter provides a long distance connection between legacy 10BaseT, 100BaseTX networks and the 1000Base Gigabit Ethernet networks. The SED-1000MLC -10 incorporates advances features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fibre Fault Alert & loop back.
This unit can be used as a standalone unit or as a slide-in module in a 14 slot Media Converter Chassis.

PRODUCT FEATURE

* Built-in twisted-pair port 10/100/1000 switch

* Auto-Negotiation RJ45 Connector with Auto-MDIX

* LC/UPC Connector

* LEDs for Functions, Links & Activity

* Link Fault Signaling for use with Managed Switches

* Store and Forward Architecture

* Singlemode Spans up to 90Km

* Wall or Chassis Mountable

* IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant

* Compliant to FCC part 15 Class A, CE Mark, CTick

PRODUCT SPECIFICATION
